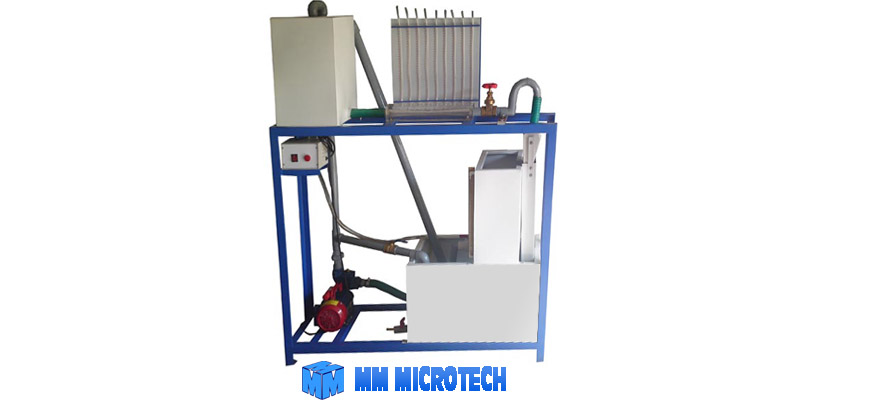

Bernoulli's Theorem Apparatus

High quality Bernoulli's Theorem Apparatus is offered by us. Set up of our Bernoulli's Theorem Apparatus consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement. The flow rate of water in Bernoulli's Theorem Apparatus is measured using measuring tank and Digital Timer provided.

Features:

  1. Water Circulation Closed loop.
  2. Compact & stand-alone set up
  3. Powder Coated Painted structure
  4. Simple to operate & maintain

Specifications:

  • Pump : ½ HP Centrifugal Pump.
  • AC Motor : ½ HP 230V AC.
  • Supply Tank : 120 Ltrs. Made of MS with FRP Lining.
  • Measuring tank : 40 Ltrs. Made of MS with FRP Lining and fitted with piezo meter tube & scale.
  • Fitted with Venturi meter with 7 Nos. piezo meter tube & scale
  • Piping & Fittings : GI/PVC with necessary Valves.
  • Control panel : 1HP DOL Starter.
  • Digital Timer : MCB Load and Line Indicator.

Utilities Required:

  • Electric supply Provide : 230 +/-10 VAC, 50 Hz, Single phase
  • Electric supply with proper earthing. (Neutral . Earth voltage less than 5 VAC.)
  • 5A,Three pin socket with switch for pump.
  • Water supply Tap water connection ½. BSP

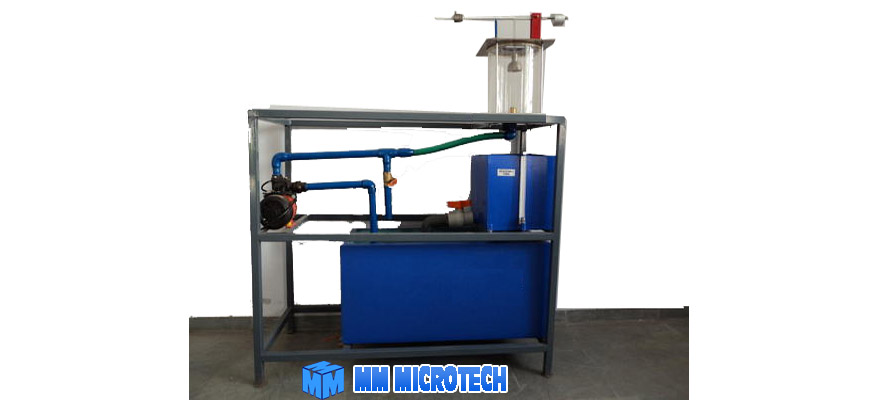

Impact of Jet Apparatus

We are engaged in offering feature packed Impact of Jet Apparatus. Impact of Jet Apparatus consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement. The flow rate of water is measured using measuring tank and Digital Timer provided in our Impact of Jet Apparatus.

Features:

  1. Water Circulation Closed loop.
  2. Compact & stand-alone set up
  3. MS Tanks with FRP Lining.
  4. Powder Coated Painted structure
  5. Simple to operate & maintain

Specifications:

  • Pump : ½ HP Centrifugal Pump.
  • AC Motor : ½ HP 230V AC.
  • Supply Tank : 120 Ltrs. Made of MS with FRP Lining.
  • Measuring tank : 40 Ltrs. Made of MS with FRP Lining and fitted with piezo meter tube &scale.
  • Piping & Fittings : GI/PVC with necessary Valves.
  • Fitted with Nozzles dia. 6mm,8mm,10mm.
  • Fitted with different Vane.
  • Fitted with Load Cell and Digital Load Indicator.
  • Control panel : 1HP DOL Starter.
  • Digital Timer : MCB Load and Line Indicator.

Utilities Required:

  • Electric supply Provide : 230 +/-10 VAC, 50 Hz, Single phase
  • Electric supply with proper earthing. (Neutral . Earth voltage less than 5 VAC.)
  • 5A,Three pin socket with switch for pump.
  • Water supply Tap water connection ½. BSP

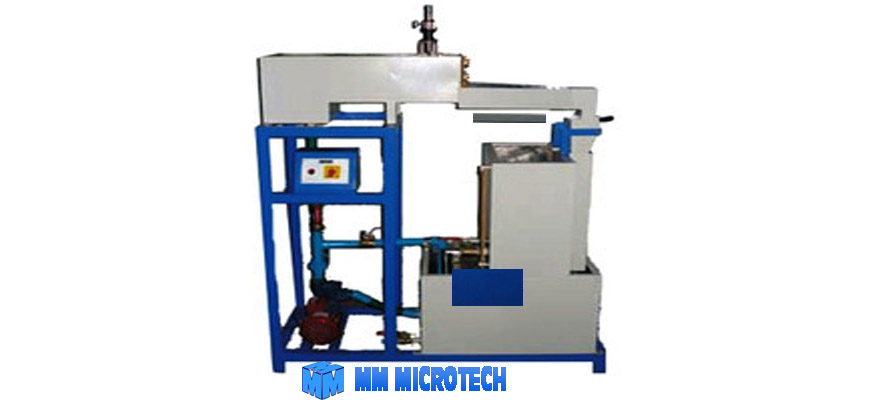

Notches Apparatus

We are the one stop destination for availing top grade Notches Apparatus. The set up of our Notches Apparatus consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement. The flow rate of water is measured using measuring tank and Digital Timer provided. Notches Apparatus offered by us is precision engineered.

Features:

  1. Water Circulation Closed loop.
  2. Compact & stand-alone set up
  3. MS Tanks with FRP Lining.
  4. Powder Coated Painted structure
  5. Simple to operate & maintain

Specifications:

  • Pump : ½ HP Centrifugal Pump.
  • AC Motor : ½ HP 230V AC.
  • Supply Tank : 200 Ltrs. Made of MS with FRP Lining.
  • Flow Channel : 250mm W x 250mmH x 1000mm L
  • Measuring tank : 40 Ltrs. Made of MS with FRP Lining and fitted with piezo meter tube & scale.
  • Piping & Fittings : GI/PVC with necessary Valves.
  • Fitted with V Notch 90 degree.,60 degree. Rectangular , Trapezoidal Notch.
  • Fitted with Height Gauge for measurement of Height of Fluid flow in channel.
  • Control panel : 1HP DOL Starter
  • Digital Timer : MCB Load and Line Indicator.

Utilities Required:

  • Electric supply Provide : 230 +/-10 VAC, 50 Hz, Single phase
  • Electric supply with proper earthing. (Neutral . Earth voltage less than 5 VAC.)
  • 5A,Three pin socket with switch for pump.
  • Water supply Tap water connection ½. BSP

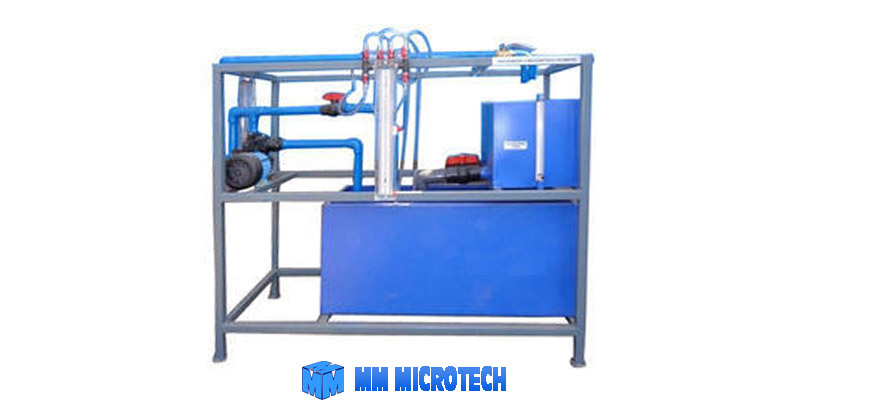

Orifice Meter Apparatus

Orifice Meter Apparatus offered by us are in compliance with the set industrial standards. Our Orifice Meter Apparatus consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement. The flow rate of water is measured using measuring tank and Digital Timer provided in our Orifice Meter Apparatus.

Features:

  1. Water Circulation Closed loop.
  2. Compact & stand-alone set up
  3. MS Tanks with FRP Lining.
  4. Powder Coated Painted structure
  5. Simple to operate & maintain

Specifications:

  • Pump : ½ HP Centrifugal Pump.
  • AC Motor : ½ HP 230V AC.
  • Supply Tank : 120 Ltrs. Made of MS with FRP Lining.
  • Measuring tank : 40 Ltrs. Made of MS with FRP Lining and fitted with piezo meter tube &&scale.
  • Piping & Fittings : GI/PVC with necessary Valves.
  • Fitted with U-Manometer with Mercury.
  • Control panel : 1HP DOL Starter.
  • Digital Timer : MCB Load and Line Indicator.

Utilities Required:

  • Electric supply Provide : 230 +/-10 VAC, 50 Hz, Single phase
  • Electric supply with proper earthing. (Neutral . Earth voltage less than 5 VAC.)
  • 5A,Three pin socket with switch for pump.
  • Water supply Tap water connection ½. BSP

DYNAMICS LAB

CAM ANALYSER The apparatus is designed to study the cam profiles and performance of cam and follower system. A shaft supported by ball bearings upon which three different types of cams can be mounted.
GYROSCOPE It is designed to verify the gyroscopic rules of a plane rotating disc The set up consists of heavy stainless steel disc mounted on a horizontal shaft, rotated by a variable speed motor. Rotor disc can be move about three axis.
GOVERNOR To study the determination of characteristics curves of radius of rotation against controlling force (Actual & Theoretical) for all governors. The set-up is designed to study the working of different governors normally used to control the speed. It consists of a main spindle, mounted vertically on the base plate.
WHIRLING OF SHAFT In a rotating shaft at which instability occurs is called whirling or critical speed. When shaft reaches critical speed it will have maximum deflection. It is applicable in power transmitting equipments like turbine, propeller shafts, etc.
STATIC AND DYNAMIC BALANCING MACHINE This equipment is designed for carrying out the experiment for balancing a rotation mass system. The apparatus consists of four circular discs mounted on a shaft. The discs are grooved for the attachment of weights at a specific radius. The block are clamped on shaft is rotated by a motor to check dynamic balance of the system.
VIBRATING TABLE To determine transmissibility of forced vibrations and to analyze all types of Vibrations with its frequency and amplitude
VIBRATION TEST FACILITIES APPARATUS The apparatus is designed to help in conducting various experiments to illustrate and verify the principles and relations involved in the study of vibrations. Following experiments can be performed with this unit.
KINEMATICS OF VARIOUS MECHANISMS
Four Bar Mechanism A four-bar linkage, also called a four-bar, is the simplest movable closed chain linkage. It consists of four bodies, called bars or links, connected in a loop by four joints.
Single Slider Mechanism SINGLE SLIDER CRANK MECHANISM: When one of turning pairs of a four bar chain is replaced by sliding pair, it becomes a single slider crank chain
Double slider Crane Mechanism DOUBLE SLIDER CRANK MECHANISM: The double slider-crank linkage has four links joined in a kinematic chain consisting of two revolute joints and two sliding or prismatic joints

Metrology Lab(Measurementation Lab) and Instrumentation Lab Equipments

FLOATING CARRIAGE MICROMETER This measuring machine is designed to have accurate measurements of major,minor& effecive diameter of precision screw threads as well as those of odd flutes screw taps. All guide ways and wearing parts are hardened and ground

TORQUE MEASURING SETUP This measuring machine is designed to have accurate measurements of major,minor & effecive diameter of precision screw threads as well

DISPLACEMENT MEASURING SETUP Specification:±10mm
Micrometer:±0-25mm
Indicator: digit to read upto 10mm

VIBRATION / SHOCK MEASURING SETUP Specification: Magnification: Vibration Genereation: Capacity 5 Newton
Excitation Frequency :50 Hz to 1 K HZ
Excitation Voltage : 0 to 10V P to P
Vibration Sensor : Piezoelectric type
Vibration Indicator :3 ½ digit LCD display by selsection through selector switch

FORCE VIBRATION TESTING Specification: Load cell : 1kg capacity | weight : 100gms. x 10 nos. | Indicator :3½ digit display to read upto 1 kg. | Resolution : 0.01 kg.

SLIP GAUGE SET Specification: 112 pieces AS per IS:2984-1966,slip gauges are available in three different grades i.e. grate O,grate I,and grate II.
Grate I-slip gauges are used in inspection department
Grate II-slip gauges are used in workshop
Grate 0-slip gauges are used in laboratories & standard rooms some available sets of slip gauges are-M112,M105,M50,M33,M27.M45,etc.

BEVEL PROTECTOR Specification: Range: 360 Deg, LC:5Min, it is capable of measuring from 0 to 360°. the vernier scale has 24 divisions coinciding with 23 main scale divisions.thus the least cout of the instrument is 5.This instrument is most commonly used in workshops for angular measurments till more precision is required

PNEUMATIC COMPARATOR a) Accurate C-jet Dial Type Air Gauge Unit Range ±0.001mm.
b) Oill & Moisture removial filter set Unit, Outlet house, cock valve, pressure indicator.,
c) 2jet Air Plug Gauge Dia. 10-20 through bore with setting rings.

ELECTRICAL COMPARATOR Specification: Operates on the principal of the Change of inductance of a coil by movement
of a steel armature,which is moved by a plunger arrangement in contact with the surface to be checked.
the plunger consists of Electrical Gauge Head with armature and feeler,Ammeter,Power Supply,with 2 amps x 2 Nos.
dimmer & specimen Holder

TOOL MAKER'S MICROSCOPE Specification: Magnification:30 X with X-Y movement on ball bearingcslides
Micrometer:(50mm dia)L.C 0.01 with monometer Having both Transmitted and incident light in wooden box.

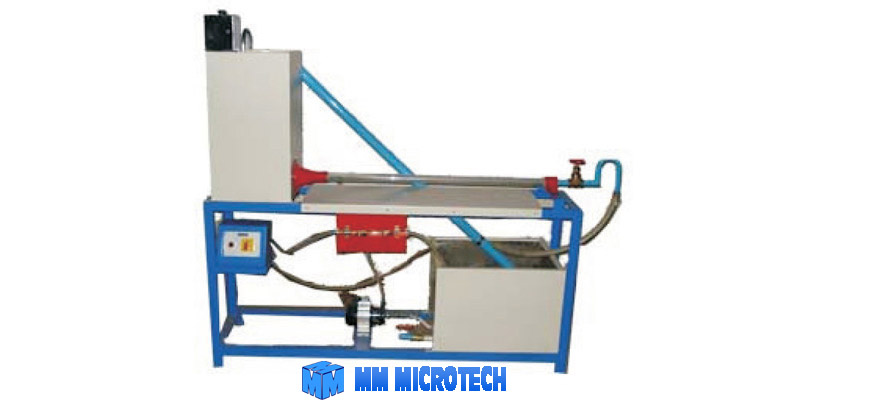

Reynolds Apparatus

We deal in high-quality Reynolds Apparatus, which is specially meant for deducing the Reynolds number and further the flows type laminar or turbulent. We are reckoned among the leading Manufacturers and Suppliers of Reynolds Apparatus in Kolkata, West Bengal. The Apparatus is characterized by durability, user-friendly interface, hassle-free maintenance, space-spacing structure, rugged body, etc. And its quality is tested and ascertained on all the crucial parameters such as performance and life.

Features:

  1. Choice of Test Section
  2. Closed loop water circulation
  3. Compact & stand alone set up
  4. MS Excel sample calculation program on demand
  5. Stainless Steel tanks and wetted parts
  6. Superb Painted structure
  7. Simple to operate & maintain

Specifications:

  • Tube : Material Borosilicate Glass
  • Dye vessel : Material Stainless Steel, Suitable Capacity
  • Capillary Tube : Material Copper/Stainless Steel
  • Constant Head Water Tank : Capacity 40 Ltrs MOC SS / MS with Powder Coated
  • Flow Measurement : Using Measuring Cylinder./ Using Measuring Tank, Capacity 25 Ltrs. MOC SS / MS with Powder Coated
  • Sump Tank : Capacity 60 Ltrs MOC SS / MS with Powder Coated
  • Water Circulation : HP Mono block Pump.
  • Piping & Fittings : GI/PVC with necessary Valves.
  • Stop Watch : Electronic
  • Control Panel : ON/OFF Switch, Mains Indicator, etc.

Utilities Required:

  • Electric supply Provide : 230 +/-10 VAC, 50 Hz, Single phase
  • Electric supply with proper earthing. (Neutral . Earth voltage less than 5 VAC.)
  • 5A,Three pin socket with switch for pump.
  • Water supply Tap water connection ½. BSP
